Equipment
Horizontal band saws - stationary and mobile - are designed for sawing logs and beams of various lengths into edged and unedged lumber of the required thickness. The equipment can be used for edged and sawing lumber to the required width. SIA “TEHNIKA AUCE” offers mobile and stationary equipment with various possible combinations of designs and additional equipment.
Vertical band saws - designed for sawing beams and edges of various lengths into edged and unedged lumber of the required width and thickness.
! It is possible to purchase the necessary spare parts for all equipment, as well as saw blades for sawing timber.
Stationary horizontal band saws
Horizontal band saw ZBL-50H (basic configuration)
- Saw blade length, mm: 40 x 4250
- Log diameter, mm: up to 630
- Sawing table length, m (log length, m): 8 (up to 6.3)
- Electric motor power, kW: 11
- Feed: Manual
Standard version:
- Clamp sets, pcs.: 2
Hydrolyzed version:
- Support leg set, pcs.: 1
- Hydraulic clamps, pcs.: 4
Horizontal band saw ZBL-60H (basic configuration)
- Saw blade length, mm: 40 x 4520
- Log diameter, mm: up to 630
- Sawing table length, m (log length, m): 8 (up to 6.3)
- Electric motor power, kW: 15
- Feed: Manual
Standard version:
- Clamp sets, pcs.: 2
Hydrolyzed version:
- Support leg set, pcs.: 1
- Hydraulic clamps, pcs.: 4
Horizontal band saw ZBL-60HM (basic configuration)
- Saw blade length, mm: 40 x 4970
- Log diameter, mm: up to 800
- Sawing table length, m (log length, m): 8 (up to 6.3)
- Electric motor power, kW: 15
- Feed: Manual
Standard version:
- Clamp sets, pcs.: 2
Hydrolyzed version:
- Support leg set, pcs.: 1
- Hydraulic clamps, pcs.: 4
Accessories for stationary horizontal band saws
Frame length 9 m (up to 7.5 m beams) and 1 additional set of clamps

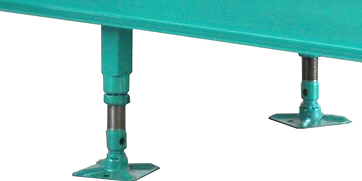

Support leg set
Additional clamp set for standard frame
Additional clamp set for hydroformed frame
Pre-milling

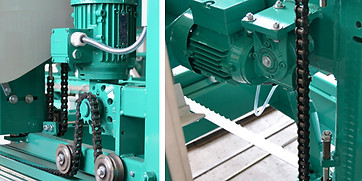

Electric travel and electric control of the support roller with standard control or control at the column
Cable tunnel

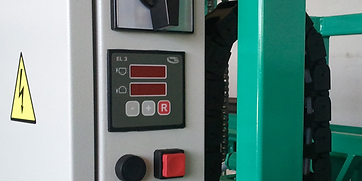

Electronic ruler or Electronic ruler with frequency converter
Positioning controller EPC-3
Saw blade width 50mm
Dynamic brake of electric motor
Portable horizontal band saws
Portable horizontal band saw ZBL-P50HV* (basic configuration)
- Saw blade length, mm: 40 x 4250
- Log diameter, mm: up to 630
- Sawing table length, m (log length, m): 8 (up to 6.3)
- Gasoline engine power, hp: 18
- Feed: Manual
- Starter: Yes
- Log lift: Mechanical (hand) winch
- Size setting: Hydraulic
- Support leg set: Yes
- Frame (sawing table): Foldable
- Clamp sets, pcs.: 2
- Certified coupling and axle: Yes
ZBL-P50HV additional equipment:
*ZBL-P50HVe - portable band saw with ZBL-50H electric sawing unit
- Briggs&Stratton or WEIMA (China) gasoline engine
Portable horizontal band saw ZBL-P50H (basic configuration)
Saw blade length, mm: 40 x 4250
- Log diameter, mm: up to 630
- Sawing table length, m (log length, m): 8 (up to 6.3)
- Gasoline engine power, hp: 23
- Feed: Manual
- Starter: Yes
- Hydraulic log lift: Yes
- Size setting: Hydraulic
- Support leg set: Yes
- Frame (sawing table): Foldable
- Clamp sets, pcs.: 2
- Certified coupling and brake system: Yes
Accessories for band saw ZBL-P50H
Electronic ruler
Log turner
Vertical band saws
Vertical band saw ZL-60V (basic configuration)
- Saw blade length, mm: 40 x 4250
- Length with support tables, m: 2.7
- Support tables, pcs.: 2
- Thickness of the material to be sawn, mm: up to 250
- Width of the material to be cut, mm: up to 120
- Electric motor power, kW: 7.5
- Electronic feed adjustment: Yes
Accessories for vertical band saw ZL-60V
